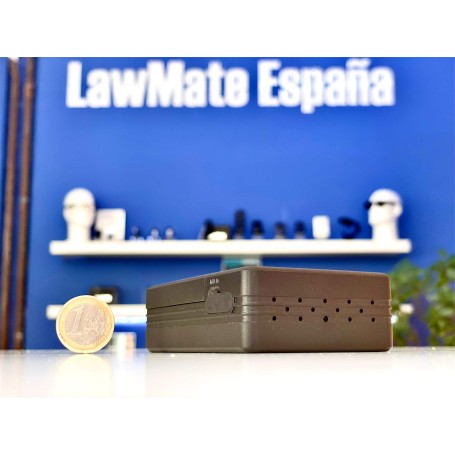

PV-BX12 Box with spy camera 5MP Full HD 60 FPS and PIR external
The PV-BX12 from LawMate record videos in Full HD at 60 FPS with its 5 MP camera hidden in the front. Record by motion detection, manual or PIR sensor external micro SD card. Has microphone. Compatible with cameras LawMate.

The PV-BX12 from LawMate is the perfect complement to the cameras of the range of LawMate. On the front is a mini spy camera a fully camouflaged of 5 MP which records videos in Full HD at 60 fps.
It has a video input to connect any camera from LawMate getting a recording device totally portable.
The novelty of the PV-BX12 is that it also allows you to connect a sensor volumetric (included) at a distance of 3 meters getting a new recording mode.
Differences in the modes of recording:
- Standard: start recording by pressing the REC button.
- Motion detection: start recording when a movement is detected in the assigned area of the screen (this is divided into grids).
- PIR: Start to record when the sensor is active. The sensor is connected to the PV-BX12 using a USB cable of 3 meters.
The PV-BX12 can operate via 4 AA batteries or connected to the electrical grid (autonomy unlimited)
Example of use:
- As a black box hidden. It is not necessary to attach any additional camera. Recorded in Full HD with the built-in camera that it has on the front. Just put it on top of a table and choose the recording mode.
- As DVR portable. Hides the PV-BX12 in a pocket and connects to an external camera such as glasses or other type collar. Now you will have a computer totally portable.
The playback of the videos can be done by directly connecting the PV-BX12 to the TV using an HDMI cable or by putting the micro SD card to the PC.
The package contains:
- 1 x Camera PV-BX12
- 1 x Cable RCA Video output
- 1 x Cable RCA Video input
- 1 x Micro SD Card
- 1 x power Cable
- 4 x AA Batteries
- 1 x USB Cable 3 meters extender PIR
- 1 x PIR Sensor
- Frames Video Maximum
- 25 FPS
- Records Video and Audio Together
- IF
- Video Resolution Maximum
- 920X1080@30fps, 1280X720@60fps, 1280X720@30FPS, 640x480@60fps, 640x480@30fps
- Video Format
- MOV/AVI
- Angle of view
- 74°
- Motion detection recording
- IF
- Photo Resolution
- 5MP(2592X1944)
- Autonomy Unlimited
- Yes, Connected to the electrical grid
- Minimum illumination
- 3.3 Lux @ F 2.0
- Brand
- LawMate
- Weight
- 95g
- Dimensions
- 65 X 95 X 30 mm
- Memory up to
- 128 Gb
- Built-In Microphone
- Yes
- Date and time stamp
- IF
- Storage capacity
- Micro SD up to 16 Gb
- Continuous Recording
- IF
- CMOS Sensor
- 1/3.2“ progressive
- Cyclic Recording
- IF
- Focal Lens
- 4mm
- Compression H. 264
- IF
- Detection recording, PIR
- IF
- Date and time format
- YYYY.MM.DD, HH:MM:SS
