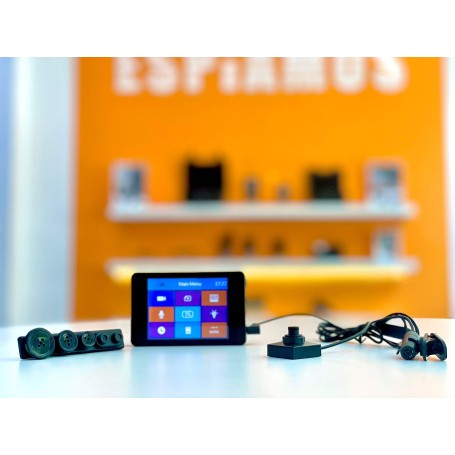

LawMate PV 500 ECO2 Kit LawMate CM-BU20 Push Button Camera

PV 500 ECO2 portable digital recorder with touch screen. It records by motion detection and manually with a resolution of 720 x 480. Up to 128 GB of memory and 700 minutes of autonomy Spy camera button type CM-BU20 of very low brightness.

€399.95 Tax included

€330.54 Tax excluded

check In stock
LawMate PV 500 ECO2 Kit LawMate CM-BU20 Push Button Camera

LawMate PV 500 ECO2 Kit LawMate CM-BU20 Push Button Camera


Would you like to buy the new LawMate PV 500 ECO2 portable DVR?

Introducing the latest LawMate PV-500ECO2 digital video recorder. This new version has a 3" touch screen and is compatible with 5V and 12V cameras. It records manually, by motion detection or programmed date and time, try it, you will be surprised! Includes CM-BU20 spy camera.

Main features of the PV 500 ECO2 portable DVR:

  • 3" touch screen display: Off, 1, 3 and 5 min.
  • 2 inputs for 2.5 and 3.5mm cameras
  • Compatible with analog and digital cameras
  • Performs screen capture in preview or playback mode
  • D1 resolution: 720 x 480p
  • Motion detection recording, continuous recording
  • Password protection
  • Touch screen lock
  • Overwrite function
  • microSD memory: up to 128 Gb (not included)
  • Remote on/off control cable

Key features LawMate CM-BU20 Camera

  • Horizontal resolution: 520 TV lines
  • Minimum illumination: 0.015 Lux @ F1.2
  • Viewing angle 66°.
  • Power Supply: DC 5V / 150 mA
  • Dimensions: 24.8 mm (L) * 24.8 mm(W) * 17 mm(H)

How does the PV 500 ECO2 portable DVR work?

This device is very easy to use. You can configure it directly from the DVR itself with its touch screen. From here you can:

  • Activate / Deactivate date and time stamping on recordings.
  • Set the time
  • Activate / Deactivate the built-in microphone
  • Lock the touch screen
  • Change the password
  • Format microSD card
  • View occupied / free space
  • Update firmware
  • Load default settings

In motion detection mode you can adjust:

  • Sensitivity of detection: High / Medium / Low
  • Recording time: 1 min / 3 min / 5 min
  • Enable / Disable cyclical recording

PV 500 ECO2 portable DVR memory

All videos are stored on a microSD card up to 128Gb. A 16Gb microSD card is included.

High Autonomy

The PV 500 ECO2 portable DVR incorporates a battery that allows up to 300 minutes of recording. With the BA-4400 battery (not included) you can achieve up to 700 minutes of continuous recording.

Which cameras are compatible with the PV 500 ECO2 DVR?

One of the new features of the DVR PV 500 ECO2 is that it has 2 video inputs for cameras with 2.5 and 3.5mm connection. RCA adapters are included as accessories so that you can connect any analog or digital camera to


2.5mm input you can connect any LawMate analog camera such as the BU19 low-light button mini-camera.

The DVR PV 500 ECO2 is not compatible with the NEO series cameras or CMD-BU20U


Is the PI-RF50TX remote control compatible?

Yes, the PV-500 ECO2 DVR is compatible with the PI-RF50TX remote control (not included) which will allow you to control the DVR from a distance of up to 10 meters. You will be able to turn on, turn off, start or stop recordings with the push of a button on the controller.

Password Protection

This feature allows you to set a password to the portable DVR so that only the administrator can delete the recorded files.

What is the difference between the PV 500 ECO2 portable DVR and other portable DVRs?

LawMate is the brand of reference for all professionals who need to record videos for court proceedings.

The differences between the PV 500 ECO2 and other portable DVRs of Chinese origin lie mainly in the quality of the components. This device, manufactured in Taiwan, uses the latest technology on the market. All its components have been perfectly chosen so that you get a reliable and robust equipment. If you want to buy a quality portable recorder, this is the device for you.

Where to buy the PV 500 ECO2 portable DVR?

You will not find this product in any spy store. ESPIAMOS is the official distributor of the LawMate brand in Spain. Get the best price buying directly from the factory, without intermediaries,

as official distributors of the LawMate brand we offer a 2 year warranty and official technical support. If the product does not convince you, you will have 14 days to return it. Come to any of our physical stores to try it. You will be surprised by the amount of spy products we have for you.

Technical specifications of the PV 500 ECO2 portable DVR:

  • 2 video inputs: 2.5 and 3.
  • 5mmRecording
  • mode
  • : Manual / Motion detection
  • Resolution: 720x576

Who are LawMate International?

Experts in recording, wireless transceiver systems and solutions. LawMate International is a professional manufacturer and service provider for audio and video surveillance systems, including portable DVRs, covert cameras, transmitters and receivers. With over 25 years of history, LawMate has developed from a small enterprise into a global business. LawMate can expertly provide integrated recording, wireless transceiver systems and solutions.

Why choose LawMate products?

There are basically three grades of various products like this in the market place today. The first grade of products is basically very low end. They really belong on toy shelves but are often sold as professional spy gear preying on those who do not understand the difference. The second grade of products is known as consumer grade products. These products are often masked as professional grade equipment, but are basically not suitable for continued long term and intensive surveillance use. The third grade is referred to as Law Enforcement grade equipment. Therein lies the complete concept of LawMate brand products. To bring a rugged professional grade product into the market place and produce products for the true surveillance and security professional, with strict quality and marketing control.
