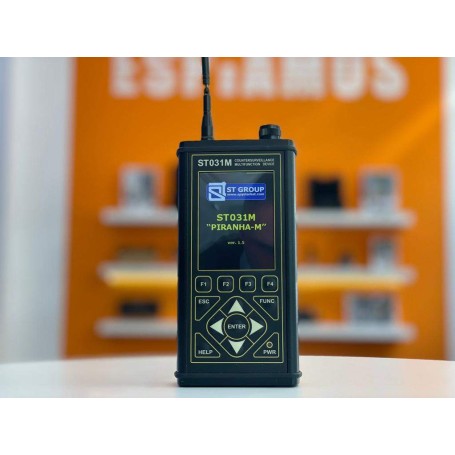

Detector multi purpose ST-031M PIRANHA FULL KIT

ST 031M "PIRANHA" is a detection device that is multifunctional, designed for the detection of equipment STM and transmission channels of a radio-emitters.

€6,495.00

Free shipping

Immediate delivery
Detector multi purpose ST-031M PIRANHA FULL KIT
Detector multi purpose ST-031M PIRANHA FULL KIT
€6,495.00

secure payment ESPIAMOS.com

ATTENTION: This product is not sold online. To make the purchase must be addressed to our physical stores or request a quote clicking HERE



ST 031M "PIRANHA" is a detection device that is multifunctional, designed for the detection of equipment STM and transmission channels of a radio-emitters. The device features with the best "cost-benefits” of a whole class of devices "PIRANHA".

ST 031M is able to detect:

  • radio microphones, stethoscopes, telephone and a radio relay, which also includes the devices that work in short pulses or with modularidades signal sophisticated;
  • computers STM using conductive lines of various applications for frequencies ultra high;
  • Microphones using conductive lines of various applications in the voice frequencies;
  • Several transmitters, which work in the ranges of IR, UV and ultrasound.



The device ST-031M "Piranha" also gives the user the possibility to identify and analyze the threats of vibration and acoustic otrass of natural origin. Functionally the device "Piranha" is composed of three distinct channels of detection, every working in a range of separate signal.

Set specialized antennas, sensors and adapters used to adapt the device to the search of different equipment STM in natural channels of information.



  • The device is controlled by means of twelve keys. The results of the screening procedure are displayed on a color LCD screen.
  • The interface of ST-031M is simple and intuitive. Its design is based on the wide experience of operation of previous models.
  • The ST031M works in both - oscilloscope and modes spectrum analyzer.



The device can identify all the information that it transmits channels of digital standard (GSM, DECT, Bluetooth, WiFi, etc.)



"PIRANHA" has a function of PC connection, and makes your viewing capabilities and file information are almost unlimited.
The standard USB port grants the user possibility to upgrade software of ST031M by yourself after downloading it from the manufacturer's site or by contact with a CD of a regional distributor.



TECHNICAL CHARACTERISTICS

HF SELECTIVE DETECTOR

  • Frequency range: 30-4400 MHz
  • Frequency range (with optional UHF mod.): up to 12 GHz
  • Transmission Band: 1-50 MHz
  • Sensitivity: -65 DBm
  • Scan speed: 20 GHz / s
  • Dynamic range: 50 dB



SCANNER-RECEIVER

  • Frequency range: 0,05-30 MHz
  • Transmission Band: 40 MHz
  • Sensitivity: 20 dBm
  • Scanning speed: 3 GHz / s
  • Dynamic range: 60 dB
  • Demodulation: AM / FM



AMPLIFIER OF LOW FREQUENCY

  • Frequency range: 0.02 to 100 kHz
  • Relationship Amplify: 0-40 dB
  • Input impedance: 100 Kom
  • The range of audio filters: 0.3 to 4.5 kHz
